Ribbon Fan-out Patch Cords
Description

Optical Fiber Ribbon Fan-Out Patch Cords use specially designed compact fan-out splitter to split optical fiber ribbon to single channels, and each channel is with optical connectors attached. It can be used to connect optical fiber in ODF. Our mass production can ensure the products with good stability in applications.

Features
  • Low Insertion Loss
  • High Return Loss
  • Good Repeatability
  • Good Exchangeability
  • Good Temperature Stability

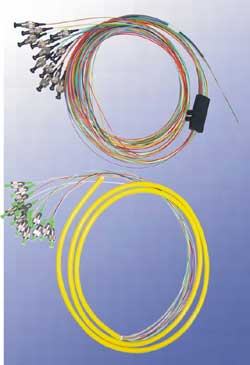

Ribbon Fan-out Patch Cords
Ribbon Fan-out Patch Cords
Applications
  • ODF
  • Optic-fiber Communication Systems
  • Computer Networks
  • Optical Access Networks
  • Test Equipment
Specifications

Type FC/PC FC/UPC FC/APC SC/PC SC/UPC SC/APC ST/PC ST/UPC
Insertion Loss (dB) ¡Ü 0.20
Max. Insertion Loss (dB) ¡Ü 0.30
Repeatability (dB) ¡Ü 0.10
Exchangeability (dB) ¡Ü 0.20
Return Loss (dB) ¡Ý 45 ¡Ý 50 ¡Ý 60 ¡Ý 45 ¡Ý 50 ¡Ý 60 ¡Ý 45 ¡Ý 50
Durability >1000 Times
Fiber Type Corning SMT-28?9/125um
Operating Temperature (¡ã? -40 ~ +80 -25 ~ +70 -40 ~ +80
Storage Temperature (¡ã? -40 ~ +85
Industry Standard Bellcore TA-NWT-001209
