Single-mode Star/Tree Couplers
Description

The Single-mode Optic-fiber Tree /Star Couplers can couple the optical signals in the coupling area, and then re-distributes the light power. The key parameters include operating wavelength, bandwidth, and excess loss, coupling ratio, PDL and so on. All-optical fused couplers are proven having high performance in applications.

Features
  • Low PDL
  • Low Excess Loss
  • Good Directivity
  • Good Environmental Stability
  • Various types are optional
    • Standard,Flattened,Broadband
    • Tree,Star

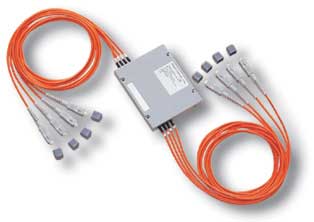

Single-mode Star/Tree Couplers
Single-mode Star/Tree Couplers
Single-mode Star/Tree Couplers
Applications
  • Optical Fiber Communication Systems
  • Optical Fiber CATV
  • Optical Amplifiers (OA)
  • Optical Access Networks
  • Monitoring Systems
  • Optical Fiber Sensor
  • Source Distribution
Specifications

Type Standard Wavelength flattened Broadband
Operating Wavelength (nm) 1310 or 1550 1310 or 1550 1310 and 1550
Bandwidth (nm) ?0 ?0 ?0
Star Structure 4 x 4 8 x 8 16 x 16 4 x 4 8 x 8 16 x 16 4 x 4 8 x 8 16 x 16
Tree Structure 1 x 4 1 x 8 1 x 16 1 x 4 1 x 8 1 x 16 1 x 4 1 x 8 1 x 16
Typical Insertion Loss (dB) 6.3 9.4 12.6 6.3 9.4 12.6 6.3 9.4 12.6
Maximum Insertion Loss (dB) 7.1 10.6 14.3 7.6 11.5 14.5 7.7 11.7 15.5
Uniformity (dB) 0.7 1.0 1.3 1.5 2.2 3.0 1.9 2.8 3.7
Minimum Directivity (dB) >60
Operating Temperature (¡ã? -40 ~ +75
Storage Temperature (¡ã? -40 ~ +85
Industry Standard Bellcore TA-NWT-001221/001209
Package Dimensions Ordering information
