Single-mode Patch Cords
Description

Optical Fiber Patch Cords (Jumpers) is a length of optical fiber with two ends adding connectors to connect beam path. Pigtail is a length of fiber permanently attached connector only at one end. Our patch cords assembled with various types of connectors (such as FC, SC, ST, etc.) There are three kinds of polished fiber end-face: PC, UPC and APC. We employ advanced technique and equipment to manufacture so as to ensure the high quality of mass production.

Features
  • Low Insertion Loss
  • High Return Loss
  • Good Repeatity
  • Good Exchangeability
  • High Temperature Stability

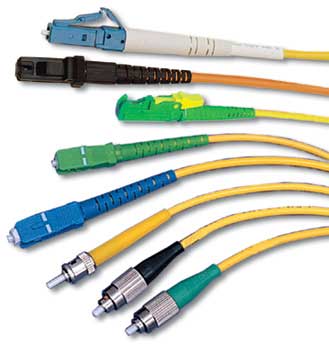

Single-mode Patch Cords
Single-mode Patch Cords
Applications
  • Optical Fiber Communication Systems
  • Optic-fiber Data Communications
  • Optic-fiber Access Networks
  • Optic-fiber CATV
  • LAN
  • Test Equipment
  • Optic-fiber Sensors
Specifications

Type FC/PC FC/UPC FC/APC SC/PC SC/UPC SC/APC ST/PC ST/UPC
Insertion Loss(dB) ¡Ü 0.20
Maximum Insertion Loss(dB) ¡Ü 0.30
Repeatability(dB) ¡Ü 0.10
Changeability(dB) ¡Ü 0.20
Return Loss(dB) ¡Ý 45 ¡Ý 50 ¡Ý 60 ¡Ý 45 ¡Ý 50 ¡Ý 60 ¡Ý 45 ¡Ý 50
Fiber Type Corning SMF-28? 9/125um
Operating Temperature (¡ã? -40 ~ +80 -25 ~ +70 -40 ~ +80
Storage Temperature (¡ã? -40 ~ +85
Durability > 1000 Times
Industry Standard Bellcore TA-NWT-001209
