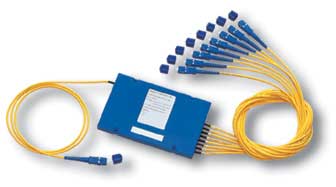

Multi-mode Star/Tree Couplers
Description

Multi-mode Fused Fiber Star/Tree Couplers are designed by series-connecting basic units to eliminatethe modal sensitivity. It can be widely used in LON, PON and Optic-fiber Sensor systems.

Features
  • Low Excess Loss
  • Operating Bandwidth (800nm - 1600nm)
  • Good Environmental Stability
Multi-mode Star/Tree Couplers
Multi-mode Star/Tree Couplers
Applications
  • Optical Communication Systems
  • LAN
  • Passive Optical Networks
  • Optical-fiber Sensor
  • Optical-fiber Test Equipment
Specifications

Operating Bandwidth (nm) 800 and 1600
Star Structure 4 x 4 8 x 8 16 x 16
Tree Structure 1 x 4 1 x 8 1 x 16
Typical Excess Loss (dB) 1.5 2.0 3.0
Maximum Insertion Loss (dB) 8.4 11.8 16.0
Uniformity (dB) 1.0 1.5 2.0
Minimum Directivity (dB) >45
Fiber Type (um) Corning50/125 or 62.5/125
Operating Temperature (¡ã? -25 ~ +75
Storage Temperature (¡ã? -40 ~ +85
Industry Standard Bellcore TA-NWT-001221/001209
