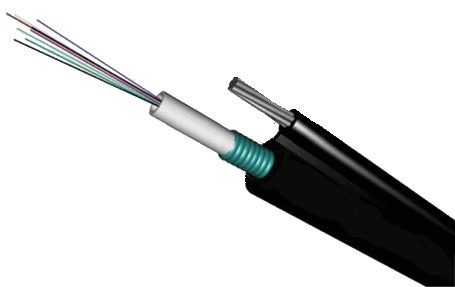

Self-supporting Aerial GYXTC8Y optical fiber cable
| |
|
Technical Characteristics |
- Low dispersion and attenuation
- Proper design, precise control for fiber excess
length and distinct stranding process render the cable
excellent mechanical and enviromental properties
- The armoring of corrugate steel tape make cable
have nice properties of moisture resistance and crush
resistance
- With small cable diameter, light cable weight,
self-supporting
| |
|
Application |
|
Long-distance
communication, local trunk line, CATV & computer
networks system | |
|

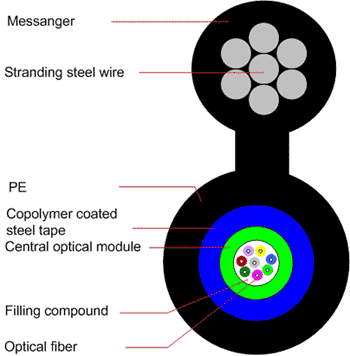

Cable structure |
|
| GYXTC8Y
| |
|
Technical indicators |
| Fiber
count |
Cable
dia. (mm) |
Cable
weight (Kg/km) app. |
Min.
bending radius (mm) |
Min.
tensile strength (N) |
Min.
crush pressure (N/100mm) |
| Static
state |
Dynamic
state |
Short term
|
Long term
|
Short term
|
Long term
|
| 2~12 |
7.6x14.5 |
120 |
120 |
240 |
3000 |
1000 |
1000 |
300 |
| 16~24 |
8.2x15.1 |
130 |
130 |
260 |
3000 |
1000 |
1000 |
300 |
| Operating temperature |
-40 ~
+70C | |
| *the cable structure also can be
design according customers requirement.
| |
