Aerial
& Conduit Ribbon GYDTA optical fiber cable
| |
|
Technical Characteristics |
- Low dispersion and attenuation
- Proper design, precise control for fiber excess
length and distinct stranding process render the cable
excellent mechanical and enviromental properties
- Aluminium-PE jacket make cable have nice
properties of moisture resistance
- With small cable diameter, light cable weight,
easily to lay, large fiber count, ribbon connection,
save the cost of engineering
| |
|
Application |
|
Access
network, local trunk line | |
|

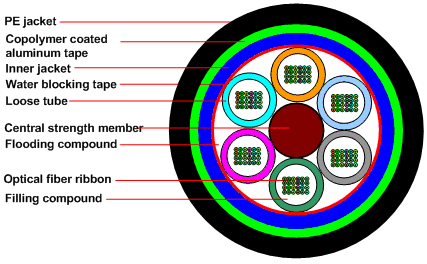

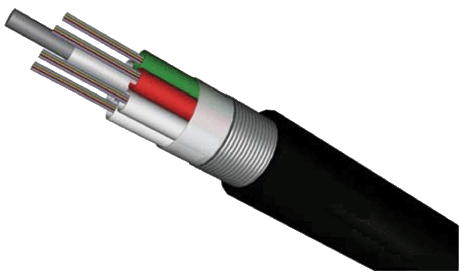

Cable structure |
|
| GYDTA | |
|
Technical indicators |
| Fiber
count |
Cable
dia. (mm) |
Cable
net weight (Kg/km) |
Min.
bending radius (mm) |
Min.
tensile strength (N) |
Min.
crush pressure (N/100mm) |
| Static
state |
Dynamic
state |
Short term
|
Long term
|
Short term
|
Long term
|
| 96 |
15.9 |
236 |
160 |
320 |
1900 |
600 |
1000 |
300 |
| 144 |
17.1 |
271 |
180 |
360 |
2200 |
600 |
1000 |
300 |
| 216 |
19.2 |
330 |
200 |
400 |
2600 |
600 |
1000 |
300 |
| 288 |
22.6 |
418 |
230 |
460 |
3000 |
600 |
1000 |
300 |
| 384 |
22.8 |
436 |
230 |
460 |
3000 |
600 |
1000 |
300 |
| Operating temperature |
-4 ~
+60°� | |
| *the cable structure also can be
design according customers requirement.
| | |
