Direct Buried GYTY53 optical fiber cable



Technical Characteristics
  • Low dispersion and attenuation
  • Proper design, precise control for fiber excess length and distinct stranding process render the cable excellent mechanical and enviromental properties
  • Double-jacket structure make cable have nice properties of moisture resistance and crush resistance
  • With small cable diameter, light cable weight, easily to lay
Application

Long-distance communication, local trunk line, CATV & computer networks system

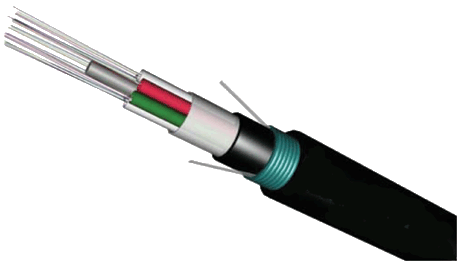

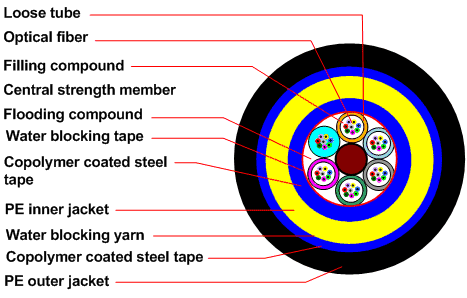

Cable structure
GYTY53
GYTY53
Technical indicators
Fiber count Cable dia. (mm) Cable net weight (Kg/km) Min. bending radius (mm) Min. tensile strength (N) Min. crush pressure (N/100mm)
Static state Dynamic state Short term Long term Short term Long term
36 & below 14.1 198 150 300 3000 1000 3000 1000
38~48 14.7 217 150 300 3000 1000 3000 1000
50~72 15.6 247 160 320 3000 1000 3000 1000
74~84 16.4 269 170 340 3000 1000 3000 1000
86~96 17.2 290 180 360 3000 1000 3000 1000
98~108 18.0 313 180 360 3000 1000 3000 1000
110~120 18.8 336 190 380 3000 1000 3000 1000
122~132 19.6 361 200 400 3000 1000 3000 1000
134~144 20.8 398 210 420 3000 1000 3000 1000
Operating temperature -40 ~ +60C
*the cable structure also can be design according customers requirement.
