SA8130 Optical Receiver

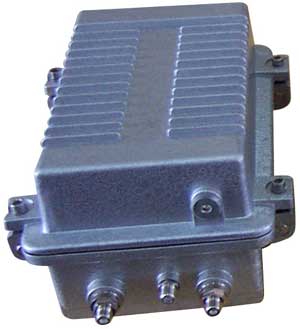

TA8130 Optical Receiver
Performance Characteristic
  • high quality PIN-diode optical receiving module.
  • four-stage input level LED display.
  • wide range of input optical power.
  • PHILIPS Power Doubler output module.
  • two outputs with plug-in splitter.
  • plug in return path module.
  • models with local and remote powering.
  • switch-mode power supply.
  • weatherproof and RF-screened die-cast housing.
Performance parameters

Item Unit Parameter
Forward path
Input Optical Power dBm -5..+2
Optical Return Loss dB >45
Wavelength nm 1100 ~ 1600
Optical Fiber Connector   FC/APC, SC/APC
RF Frequency Range MHz 47(87)~ 862
Flatness In Band dB 0.75
RF Output Level dBuV >106dBuV (1 Output, Input optical power 0dBm)
Composite Triple Beat dB >75
Composite Second Order dB >70
Return Loss dB ¡Ý 12
Output Impedance Ohms 75
Reverse path
Wavelength nm 1310?0
Output Optical Power mW 1 or 2
RF Frequency Band MHz 5 ~ 30(65)
Flatness dB ?
RF Input Level dBuV 90
Optical Fiber Connector   FC/APC, SC/APC
General
Power Voltage (50Hz) V A:(130~265)V B:(30-80)V
Power Consumption VA 25
Dimension mm 315x215x112

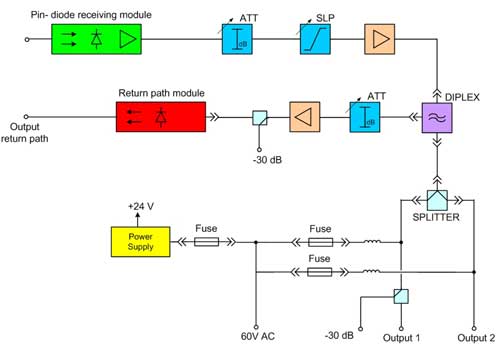

Principle Drawing
Principle Drawing
