OR2004R 4-output Return Optical Receiver

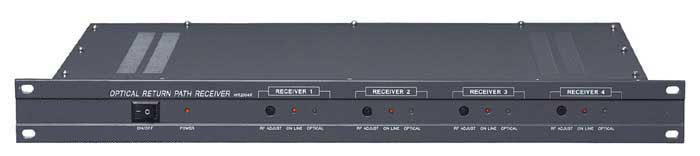

OR2004R 4-output Return Optical Receiver
Summary

OR2004R built-in 4-output independent return receive modules, suitable for CATV city bi-directional network. Easy to use, performance to price ratio high, it has used at large and middle-size city network.

Performance Characteristic
  • Each module independent receive and amplify. Output level is independently adjustable.
  • 19" 1U standard case installation.
  • Build integrated bi-directional alternation system for user.
  • Adopt U.S. E-O or PHOTON optical receive parts with small distortion and high sensitivity.
  • Adopt Philips microwave tube push-pull amplify circuit with high index and good C/N.
Performance parameters
Item Unit Parameter
Optical Parameter
Receive Optical Power Range dBm -15 ~ -3
Rated Optical Wavelength nm 1100 ~ 1600
Optical Fiber Connector FC/APC, SC/APC
Optical Return Loss dB 45
Optical Fiber Type Single Mode
RF Parameter
Operating Frequency Band MHz 5 ~ 200
Output Level dBuV 85 (Input optical power -15dBm)
Flatness In Band dB ?1
Return Loss dB ?14
Output Impedance Ohms 75
General Response
Power Voltage (50Hz) V ~220V/50HZ, or DC +48V
Power Consumption W 10
Dimension mm 483 (L) x 282 (W) x 44 (H)
Order Direction
Please confirm when order:
  • Receiver path number (Max 4 path)
  • Optical connector type
Accessories

1 User's Manual
