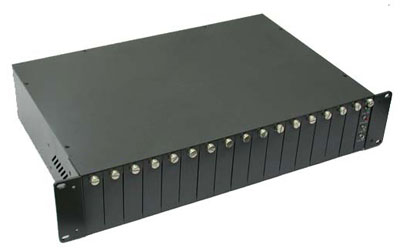

2U Rack Mount Media Converter 10/100Mb
2U Media Converter Rack 10/100Mb

Summary

The 2U Rack Mode Ethernet Converter with special module can be plug in or out with electrified cable .It use the standard 19?(2U) structure. It contains16 pieces 10Mbps or 100Mbps modules. The way of power supply can increase stability and reliability of system, fits for various request of wiring net by using high stable power.

Performance Characteristic
Application

  • Campus Network
  • LAN
  • CATV
  • Optical network for data traffic
  • Modern Building
  • Life area
  • Enterprise network
Features

  • Complies with IEEE802.3 10Base-T,IEEE802.3U
  • 16 slots
  • 100Base -TX (UTP),100Base-FX
  • Redundant power supply
  • Optical fiber interface : Multi-mode (wavelength 850nm,1300nm); Single mode (wavelength 1310nm,1550mm)
  • Operation style: full and half duplex auto-negotiation
  • Auto-refresh to keep normal work
  • Module 10/100M can be chosen.
  • 10/100M is available for auto-negotiation
  • Distance: Distance:Multi-mode:2Km 5Km , Single mode:25Km 50Km 80Km 120Km
Detailed specification on request.
Order information
  • EC-F11; 2U Media Converter Rack, Support up to 16 line cards
  • EC-AC220 or 48V; The chassis power supply
  • DF-card-10/100-1310-SC-2; Media Converter Card, 10/100Mb, dual fiber, 2km, SC
  • DF-card-10/100-1310-SC-20; Media Converter Card, 10/100Mb, dual fiber, 20km, SC
  • DF-card-10/100-1310-SC-40; Media Converter Card, 10/100Mb, dual fiber, 40km, SC
  • SF-card-10/100-1310-SC-20; Media Converter Card, 10/100Mb, 1310T/1550R, single fiber, 20km, SC
  • SF-card-10/100-1310-SC-40; Media Converter Card, 10/100Mb, 1310T/1550R, single fiber, 40km, SC
  • SF-card-10/100-1550-SC-20; Media Converter Card, 10/100Mb, 1550T/1310R, single fiber, 20km, SC
  • SF-card-10/100-1550-SC-40; Media Converter Card, 10/100Mb, 1550T/1310R, single fiber, 40km, SC
